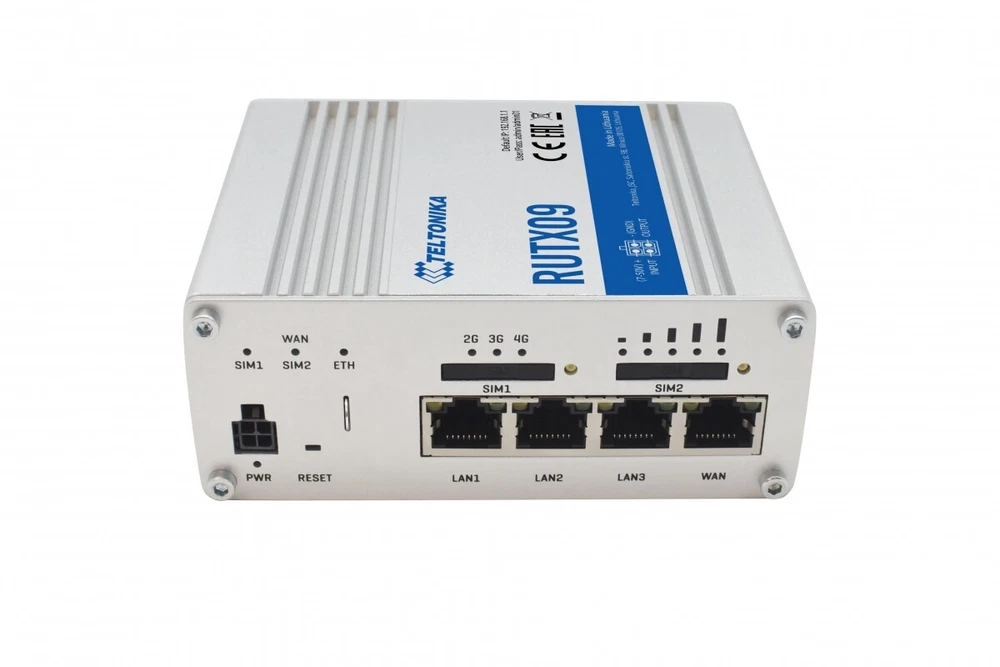

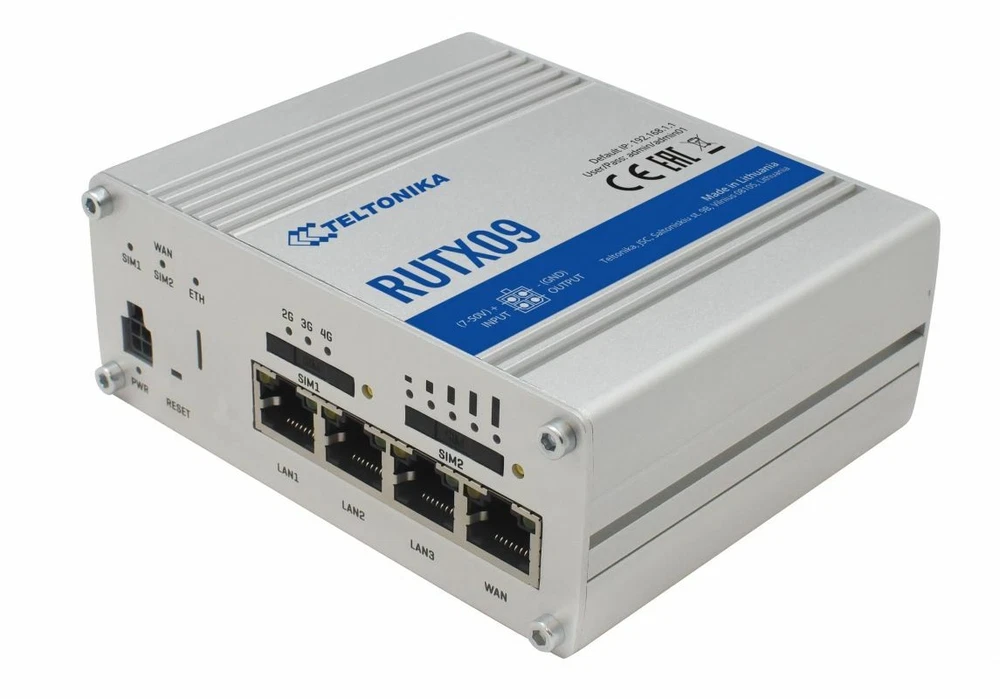

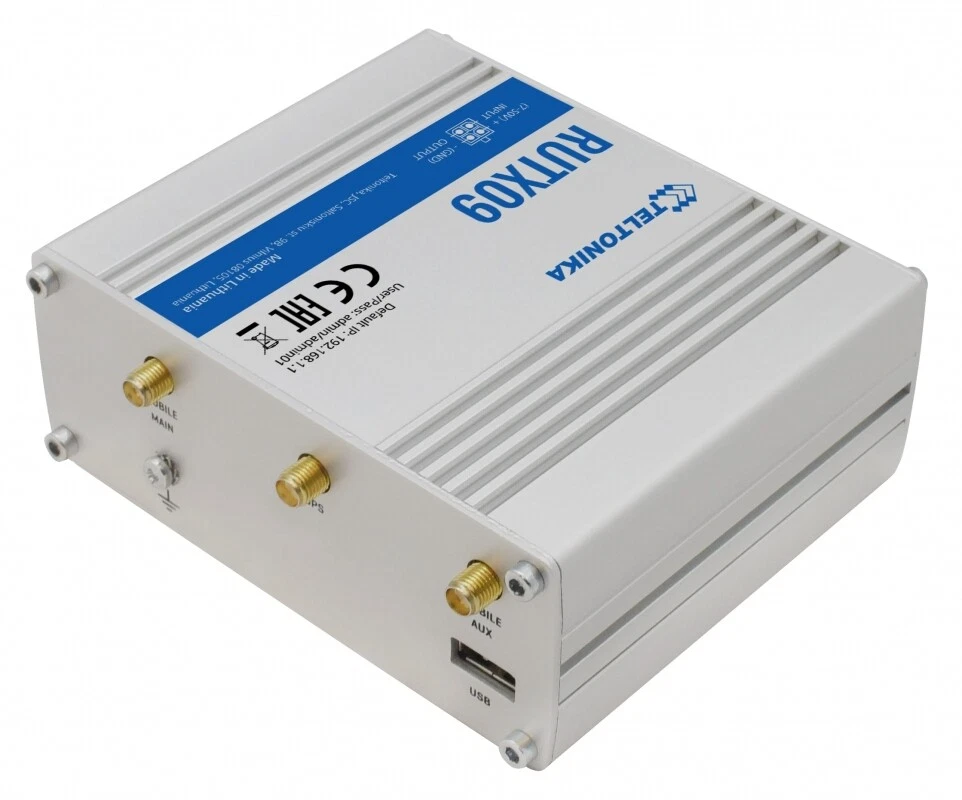

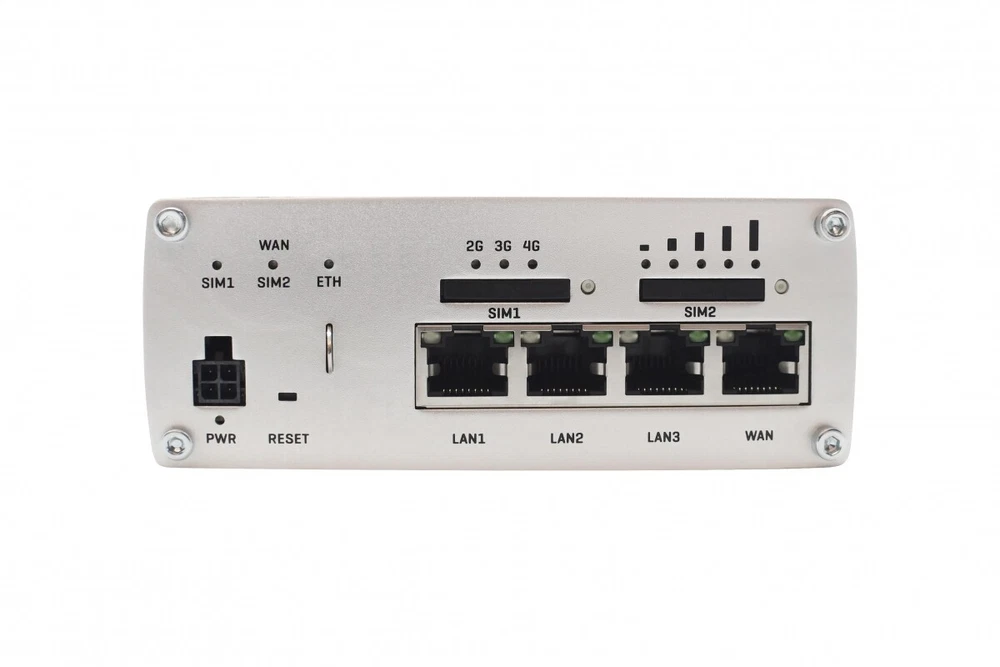

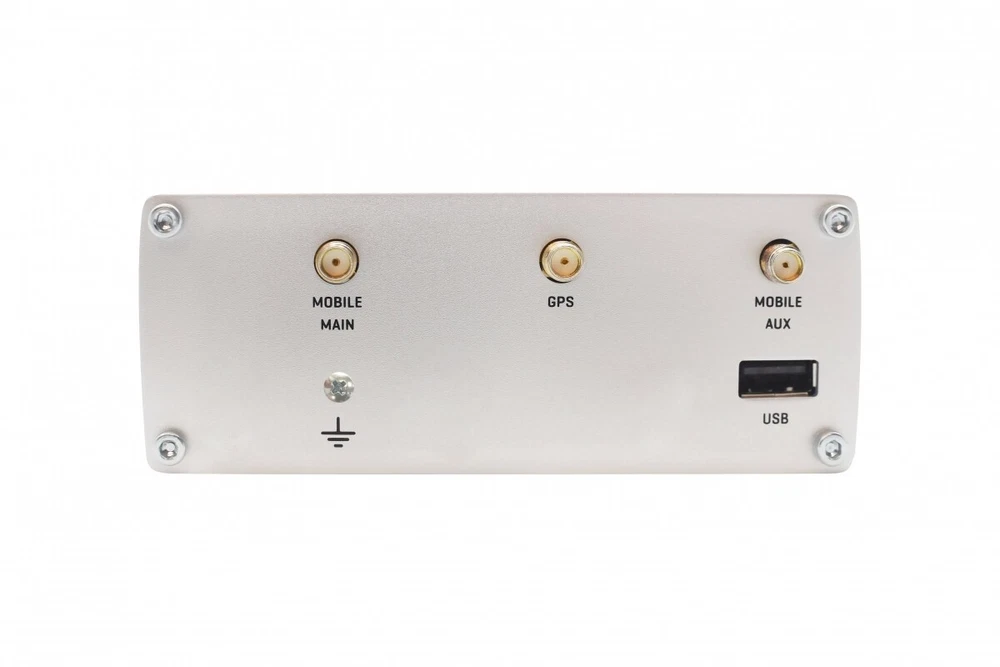

Teltonika RUTX09 LTE-A Cat6 Cellular IoT Dual SIM Router Gigabit 4 Ports EU Type

Description

TELTONIKA RUTX09 LTE-A Cat6 Cellular IoT Dual SIM Router Gigabit 4 Ports EU Type Features: Next generation LTE-A Cat6 cellular IoT router with Dual SIM, Carrier Aggregation and Gigabit Ethernet interfaces. Rugged and powerful choice with VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system. This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features. - Support LTE Cat 6 up to 300 Mbps - Gigabit Ethernet with speeds up to 1000 Mbps - Dual-SIM with auto Failover, Backup WAN and other SW features - Teltonika Remote Management System compatible - Multiple secure VPN services - Easy to use, secure and feature rich OpenWrt based Operating System Specification: MOBILE Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received Bridge: Direct connection (bridge) between mobile ISP and device on LAN SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP Black/White list: Operator black/white list Multiple PDN: Possibility to use different PDNs for multiple network access and services Band management: Band lock, Used band status display ETHERNET WAN: 1 x WAN (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN: 3 x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover NETWORK Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW) Network protocols: TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules DHCP: Static and dynamic IP allocation, DHCP Relayd QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported >25 service providers, others can be configured manually Network backup: VRRP, Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover Load balancing: Balance your internet traffic over multiple WAN connections SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW) SECURITY Authetication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Atack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port based and tag based VLAN separation Mobile quota control: Set up custom data limits for both SIM cards WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec: IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) GRE: GRE tunnel PPTP, L2TP: Client/Server services can run simultaneously Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code. MONITORING & MANAGEMENT WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log FOTA: Firmware update from server, automatic notification. SSH: SSH (v1, v2) SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems SNMP: SNMP (v1, v2, v3), SNMP trap JSON-RPC: Management API over HTTP/HTTPS MODBUS: MODBUS TCP status/control TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems MQTT: MQTT Broker, MQTT publisher RMS: Teltonika Remote Management System (RMS) SYSTEM CHARACTERISTICS CPU: Quad-core ARM Cortex A7, 717MHz RAM: 256MB, DDR2 FLASH memory: 256MB SPI Flash FIRMWARE / CONFIGURATION WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW/configuration from server RMS: Update FW/configuration for multiple devices Keep settings: Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with built environment provided LOCATION TRACKING GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA: NMEA 0183 Server software: supported server software TAVL, RMS Mobile Network Geolocation: Location without using GPS, get approximate location based on mobile tower on RMS Geofencing: Configurable multiple geofence zones INPUT/OUTPUT Input: 1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V) Output: 1 x Digital Output (open collector type, 30V@0.3A) Events: SMS, EMAIL, RMS USB Data rate: USB 2.0 Applications: Samba share, custom scripts External devices: Possibility to connect external HDD, flash drive, additional modem, printer Storage formats: FAT, FAT32, NTFS POWER Connector: 4 pin industrial DC power socket Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards Power consumption: 11W Max. PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps Status LEDs: 3 x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 3x WAN status LEDs, 1x Power LED SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8V/3V Power: 4 pin industrial DC power socket Antennas: 2 x SMA for LTE, 1 x SMA for GNNS USB: USB A socket for external devices Reset: Reset/restore to default button PHYSICAL SPECIFICATION Casing material: Full aluminium housing Dimensions: 115 mm x 95 mm x 44 mm (H x W x D) Weight: 456g Mounting options: DIN rail (can be mounted on two sides), flat surface placement OPERATING ENVIRONMENT Operating temperature: -40 C to 75 C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30
